KXD Steel Structure building Introduction:
| Steel Frame | Materials | Q355b (equivalent to S355JR, ASTM A572 Gr. 50) Q235b (equivalent to S235JR, ASTM A36) |
| H section steel | steel plate thickness: 8-30mm |
| Welding | Automatic submerged arc welding |
| Rust removal | Sand blasting |
| Surface finish | Alkyd / Epoxy zinc paint / hot dipping galvanized |
| Connection | By High strength bolt, Grade 10.9, Grade 8.8 |
| Supporting System | Angle steel brace | L steel, Q235b, painted / hot dipping galvanized |
| Horizontal brace | Steel bar, Q235b, painted / hot dipping galvanized |
| Column brace | Steel bar, Q235b, painted / hot dipping galvanized |
| Tie beam | CHS, Q235b, painted / hot dipping galvanized |
| Connection | By ordinary bolt, Grade 4.8 |
| Roof | Purlin | C/Z purlin, Q235b, pre-galvanized 100g-275g |
| Roof panel | Insulated sandwich panel or Corrugated steel sheet |
| Edge cover | steel sheet trimming |
| Gutter | Stainless steel / Galvanized sheet |
| Down pipe | Φ110 PVC-U, Φ150 PVC-U |
| Fix Accessories | sealing, self-tapping screws, etc. |
| Walls | Purlin | C/Z purlin, Q235b, pre-galvanized 100g-275g |
| Wall | Insulated sandwich panel or corrugated steel sheet |
| Accessories | sealing, self-tapping screws, etc. |
| Edge cover | steel sheet trimming |
| Fix Accessories | sealing, self-tapping screws, etc. |
| Door and window | Different sizes and types are possible to custom. |
| Additional option | Skylight panel; Roof ventilator; Parapet; Glass curtain wall; Decorative aluminum panel |
Our steel structure workshops boasts advanced technology. The precisely engineered steel frame, crafted with state-of-the-art welding, offers exceptional strength and precise alignment, enhancing structural integrity.
Our steel structure warehouse stands as a practical choice. Constructed with expert precision, the steel frame offers reliable strength to support heavy loads, with precise welding ensuring stability.
The roof of our Premium Steel Warehouse boasts superior quality insulation, ensuring a stable and consistent indoor climate that safeguards your valuable stored goods from extreme heat or cold. The robust steel walls are expertly crafted to resist unsightly dents and scratches, maintaining their pristine appearance while providing unparalleled durability.
Safety is prioritized with our state-of-the-art fire-resistant coatings. The flexible layout, combined with wide, accommodating doors, facilitates effortless loading and unloading of large items, all making it ideal for storing diverse types of merchandise with ease and efficiency.
Steel Structure Widely Appication:
| Top ten markets for steel structures |
| Housing Construction | Residential, office, public facilities (shopping malls, cinemas, stadiums, exhibition centers, aircraft terminals, train and bus platforms), factories, etc. |
| Tower Mast | Transmission lines, communications, radio and television, light poles, wind power poles, etc. |
| Container | Petrochemical equipment, storage tanks (like oil, gas, grain), etc. |
| Steel pipe | Seamless welded steel pipe, used for steel pipe structure; Solid material transportation pipelines(like water, gas, oil and other coal slurry), known as the fifth largest transport |
| Ocean Engineering | Piers, docks, oil platforms, marine structures, artificial islands, etc. |
| Bridge | Highways, railway bridges, urban light rail, overpasses, trestles and combat readiness bridges |
| Municipal facilities | Guardrails, signs, billboards, light poles, shelters, parking lots, trash cans, barrels, etc. |
| Mechanical equipment | Complete sets of equipment for construction machinery, elevators, cranes, cable cars, rolling mills, cold bending equipment, amusement facilities, petrochemical, metallurgy, light industry, home appliances, etc. |
| Household items | Doors and windows, escalators, furniture, light steel keels, warm text and decorations, etc. |
| Plantation facilities | Various greenhouses, three-dimensional planting, automatic sprinkler irrigation, greening facilities, etc. |
KXD Company Service:
Certification Service
We support third-party factory inspections and quality verification, like SGS, BV, ITS. Till now, we have made various certifications to meet different regions policy. There are SGS, ISO, CE, EN1090, EXC etc.
Workshop Visit and Product Check Service
You are warmly welcome to visit our production lines before the order, your project processing during the production and finished steel components in the packing and loading.
Flexible Payment
Different payment terms like T/T, LC, with FOB, CIF, CFR on options.
Design Service
For products, we accept the production exactly same as your own drawing details. Different standards or the equivalent exchange are both acceptable.
If you have only ideas, we could offer free architectural design and production for you.
Production Service
All raw materials are purchased from qualified mills and the materials quality should be checked when received.
Quality control will be done in each production progress to guarantee every steel component quality. And each component will packed and protected before the shipment.
Installation Support
We offer free assemble guide and solve any technical questions in the installing time.
If the client has the demands, we could also send our engineer to guide or send our installing team to install on site. Different plans are for clients' option.
| Tell us
your project ideas | Offer our customized solution & budget | Confirm Order and Start
your project |
| Share your project requirements, drawings or ideas as detailed as possible | Our team will develop the best solution based on your specifications and provide an budget for you. | After your approval,we'll start detailed drawing for production and manage every aspect of delivery and installation. |
Steel structure building installation on site:
1.Foundation construction (pre-embedded anchor bolts),
Installing detailed drawing will be offered in advance.
2. Column installation
One worker commands truck crane how to move, 3 ~ 4 workers cooperate with crane to install the steel column, put column to anchor bolt location.

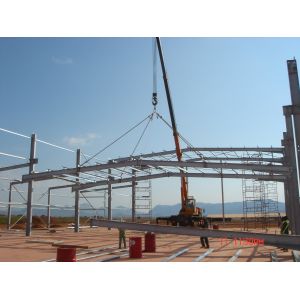

3.Beam installation
After completing the installation of adjacent two steel column, then main beam begin to install.
4.Installing roof & wall purlin
The roof and wall purlin will be installed after finishing column and beam. Bolting the purlin on the main structure.
5.Fixing wall and roof sheet
To fix the wall sheet on wall purlin by self-tapping screw; then fix the roof sheet.
6.Fixing the cover
To install the cover on the corner, eave, window and door opening.
7.Install windows and doors.
KXD Install Service:
We will offer detailed drawings to guide your installing process. Meanwhile, we still offer free technical questions solve in time. And further we offer different plans to choose for different demands.
On-line technical guide in time;
1-2 engineers to guide on site;
Our installing team process all assemble for the client.
Your Building details confirm to get a quick design & quotation:
| Details to confirm to get a quick design and quotation: |
| Size | Length × Width × Length |
| Building Application | its exact usage or special requirements |
| Roof & Wall material | Steel sheet ? Insulated Panel ? Decorative Panel? |
| Crane | yes or not? Ton? |
| Wind Load | wind speed km/h or m/s or mph? |
| Snow Load | snow weight kg/m2 or Kn/m2? |
| Door & Window | Sizes? Quantity? Layout? |
| Inner Layout | Partition room? |
| More requirements | Parapet? Skylight? Ventilation? Canopy? Glass wall curtain? |
